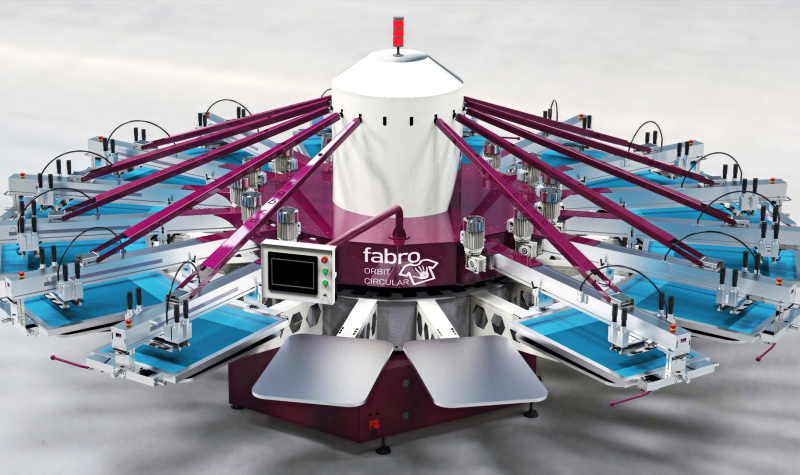

The ORBIT CIRCULAR is an advanced octopus screen printing machine that offers precise control and registration through its hi-tech servo-drive index system and AC motors. Each printhead has a high-lift feature for easy cleaning, loading, and unloading of screens, facilitating setup for other equipment like ORYXFIRE and ORYXFLOCK.

General Information

Ultra hi-tech servo-drive index system.
Squeegee movements by AC drives.
The high-lift individual printheads.
Aluminium honey-comb pallet.
Pin/U-Clamp screen holders.
LCD touch-screen control panel.
Front/rear micro registration adjustments.
Tool-free off-contact settings for accurate screen leveling.
Footpedal control.
Laser Locator System.

Accessories

Pallets available in different sizes.
Squeegee/floodbar available in different sizes.
ORYXFIRE flash cure unit.
ORYXFLOCK flocking unit.
PRETORIA digital unit.

ORBIT CIRCULAR CONFIGURATIONS

Model	Stations	Max Colors	Max Printsize	Overall Size (D*H in metre)	Max Power Consumption (kVA)	Air Pressure
F10	10	8	50x70 cm	4.55x2.30	3	6-8 bar (0.6-0.8 MPa)
F12	12	10	50x70 cm	5.15x2.30	4	6-8 bar (0.6-0.8 MPa)
F14	14	12	50x70 cm	5.50x2.30	5	6-8 bar (0.6-0.8 MPa)
F16	16	14	50x70 cm	5.80x2.30	7	6-8 bar (0.6-0.8 MPa)
F18	18	16	50x70 cm	6.35x2.30	8	6-8 bar (0.6-0.8 MPa)
F20	20	18	50x70 cm	6.70x2.30	9	6-8 bar (0.6-0.8 MPa)

ORBIT CIRCULAR XL CONFIGURATIONS

Model	Stations	Max Colors	Max Printsize	Overall Size (D*H in metre)	Max Power Consumption	Air Consumption
FX10	10	8	70x100 cm	6.05x2.30	5	6-8 bar (0.6-0.8 MPa)
FX10	10	8	80x110 cm	6.35x2.30	5	6-8 bar (0.6-0.8 MPa)
FX14	14	12	70X100 cm	7.1x2.30	7	6-8 bar (0.6-0.8 MPa)
FX14	14	12	80X110 cm	7.6x2.30	7	6-8 bar (0.6-0.8 MPa)
